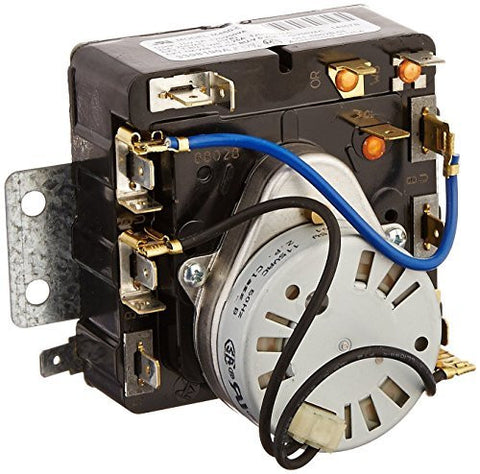

DELIVERY 2-3 Days-SD1001 Fits WP3398190 Kenmore Whirlpool Dryer Timer 3398190

$198.14

DESCRIPTION

Kenmore Whirlpool Dryer Timer: Timer is color-coded and you just plug up to the corresponding letters. This timer is showing to be the exact same part as what came off the unit so should just be able to transfer wires from one to the other and put in the same positions

3398190 perfect fit 3391658, for 3391658 You need to remove the blue jumper wire from both ends and discard it. Next, you'll take your white wire and connect it to the terminal labeled "BU" located next to the "T" terminal. Connect your brown/yellow lead to the "WR" tab and connect the remaining leads, in the same manner, they were removed.

3398190 perfect fit 3391658

FREQUENTLY QUESTION: Bought recommended part WP3398190 timer for dryer model 110.xxxxxx. Terminals don't match. Old part 3391658 has W and BY. New just WR remaining.

SOLUTION:

You need to remove the blue jumper wire from both ends and discard it. Next, you'll take your white wire and connect it to the terminal labeled "BU" located next to the "T" terminal. Connect your brown/yellow lead to the "WR" tab and connect the remaining leads, in the same manner, they were removed.
